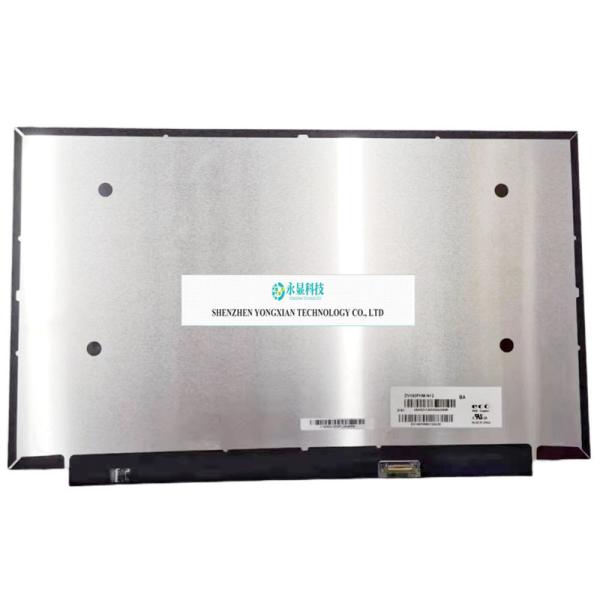

DV160FHM-N12 16.0 inch 1920X1080 30 pins 60HZ IPS Laptop LCD screen Panel NEW

Brand Name : BOE

Model Number : DV160FHM-N12

Place of Origin : CHINA

MOQ : 1

Supply Ability : 1000

Delivery Time : 5

Packaging Details : Original packaging/conventional packaging box

Brand : BOE

model : DV160FHM-N12

Size : 16.0

Panel type : a-Si TFT-LCD,module

Resolution : 1920(RGB)×1080, FHD, 139PPI

Pixel layout : RGB vertical stripe

Display area : 349.632(W)×196.668(H) mm

Appearance dimensions : 356.13(W)×219.23(H)×3.14(D) mm

Support colors : 16.7M , 72% NTSC

Surface treatment mirror : Matte(Haze 25%)，Hard coating (3H)

Brightness : 350 (Typ.)

Contrast ratio : 800 : 1 (Typ.) [Transmission]

viewing angle : 85/85/85/85 (Typ.)(CR≥10)

Working mode : ADS， Constant black display, transmissive

Refresh rate : 60Hz

Touch function : No Touch

Appearance Style : -

Panel application : Notebook computer

voltage : 3.3V (Typ.)

Maximum rating : Storage temperature:- 20~60 ° C Operating temperature: 0 ~ 50 °C

interface eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins ,Terminal,type : eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins,Terminal,

Contact Now

The DV160FHM-N12 launched by BOE is a 16.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, surface matte, eDP1.2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in digital signage. And the parameters were finally updated on February 16, 2024. According to the version number Rev. released by BOE on September 30, 2020 The product specification book for P0, DV160FHM-N12, has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 349.632 × 196.668 (width × height) mm, and its appearance size is 356.13 (width) × 219.23 (height) × 3.14 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 400g (Max.). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. DV160FHM-N12 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Packing & Shipping

DV160FHM-N12 16.0 inch 1920X1080 30 pins 60HZ IPS Laptop LCD screen Panel NEW

DV160FHM-N12 16.0 inch 1920X1080 30 pins 60HZ IPS Laptop LCD screen Panel NEW

Trading Process

DV160FHM-N12 16.0 inch 1920X1080 30 pins 60HZ IPS Laptop LCD screen Panel NEW

FAQ

1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.

2.What payment method can I use?
T/T is the best,we aslo accpet Paypal

3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,

and will use third parties delivery services or delivered as clients request.

4.How long is the warranty period?
12 Months

5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
